TE CONNECTIVITY SENSORS /// SERIES I THERMISTORS 02/2018
Page 1
SERIES I THERMISTORS
Thermally Conductive Epoxy Coating
Ø 2.4 mm Maximum Diameter
32 AWG Alloy 180 Leads
Four Temperature Tolerance Classifications Available
RoHS Compliant
BetaCURVE series I thermistors are small epoxy coated devices with
solid tin-plated lead wires. The series I offers a choice of precision
temperature tolerance classifications for a wide variety of customer
applications, such as temperature measurements, temperature indication,
temperature control, and thermal compensation.
FEATURES
Interchangeability
Proven stability and reliability
Rapid time response
Alloy lead wires for reduced thermal conductivity ("stem effect")
Thermally conductive epoxy coating
Temperature range -40ºC to +125ºC
Custom probe assemblies available
APPLICATIONS
Temperature sensing, control and compensation
Tight tolerance instrumentation
General instrumentation applications
SERIES I THERMISTORS
TE CONNECTIVITY SENSORS /// SERIES I THERMISTORS 02/2018
Page 2

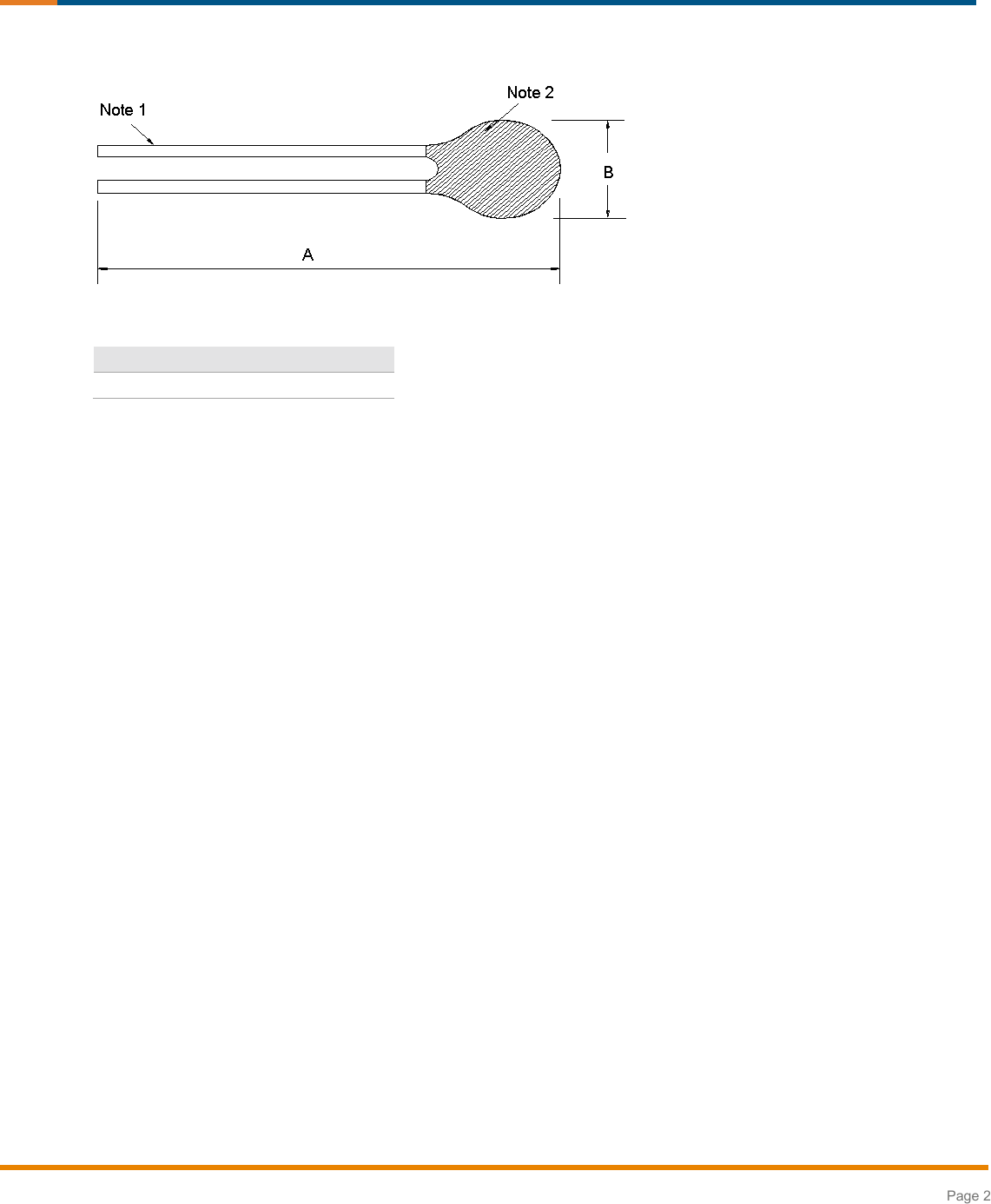

MECHANICAL DETAILS
DIMENSIONS
A
76 ±2 mm
Note 1: 32 AWG Solid Alloy 180 Leads
Note 2: Stycast 2850ft Epoxy
sislanc [fl] @ Page 3
SERIES I THERMISTORS
TE CONNECTIVITY SENSORS /// SERIES I THERMISTORS 02/2018
Page 3
PRODUCT DETAILS
Part Number
Color
Coding
Resistance
[Ω] @
+25ºC
Tolerance
from
0 to +70ºC
Alpha
Value
@ +25ºC
Beta
Value
25/85
Beta
Tolerance
Dissipation
Constant in
Still Air @+25ºC
Time
Response
(Stirred Oil)
GA2.2K3A1A
Brown
2,252
±0.1ºC
-4.39 %/ ºC
3976
±0.5%
0.75 mW/ºC
<1 second
GA2.2K3A1B
±0.2ºC
GA2.2K3A1C
±0.5ºC
GA2.2K3A1D
±1.0ºC
GA3K3A1A
Red
3,000
±0.1ºC
-4.39 %/ ºC
3976
±0.5%
0.75 mW/ºC
<1 second
GA3K3A1B
±0.2ºC
GA3K3A1C
±0.5ºC
GA3K3A1D
±1.0ºC
GA5K3A1A
Orange
5,000
±0.1ºC
-4.39 %/ ºC
3976
±0.5%
0.75 mW/ºC
<1 second
GA5K3A1B
±0.2ºC
GA5K3A1C
±0.5ºC
GA5K3A1D
±1.0ºC
GA10K3A1A
Yellow
10,000
±0.1ºC
-4.39 %/ ºC
3976
±0.5%
0.75 mW/ºC
<1 second
GA10K3A1B
±0.2ºC
GA10K3A1C
±0.5ºC
GA10K3A1D
±1.0ºC
GA10K4A1A
Black
10,000
±0.1ºC
-4.04 %/ ºC
3694
±0.5%
0.75 mW/ºC
<1 second
GA10K4A1B
±0.2ºC
GA10K4A1C
±0.5ºC
GA10K4A1D
±1.0ºC
GA30K5A1A
White
30,000
±0.1ºC
-4.30 %/ ºC
3942
±0.5%
0.75 mW/ºC
<1 second
GA30K5A1B
±0.2ºC
GA30K5A1C
±0.5ºC
GA30K5A1D
±1.0ºC
GA30K6A1A
Green
30,000
±0.1ºC
-4.68 %/ ºC
4261
±0.5%
0.75 mW/ºC
<1 second
GA30K6A1B
±0.2ºC
GA30K6A1C
±0.5ºC
GA30K6A1D
±1.0ºC
GA50K6A1A
Blue
50,000
±0.1ºC
-4.68 %/ ºC
4261
±0.5%
0.75 mW/ºC
<1 second
GA50K6A1B
±0.2ºC
GA50K6A1C
±0.5ºC
GA50K6A1D
±1.0ºC
GA100K6A1A
Violet
100,000
±0.1ºC
-4.68 %/ ºC
4261
±0.5%
0.75 mW/ºC
<1 second
GA100K6A1B
±0.2ºC
GA100K6A1C
±0.5ºC
GA100K6A1D
±1.0ºC
