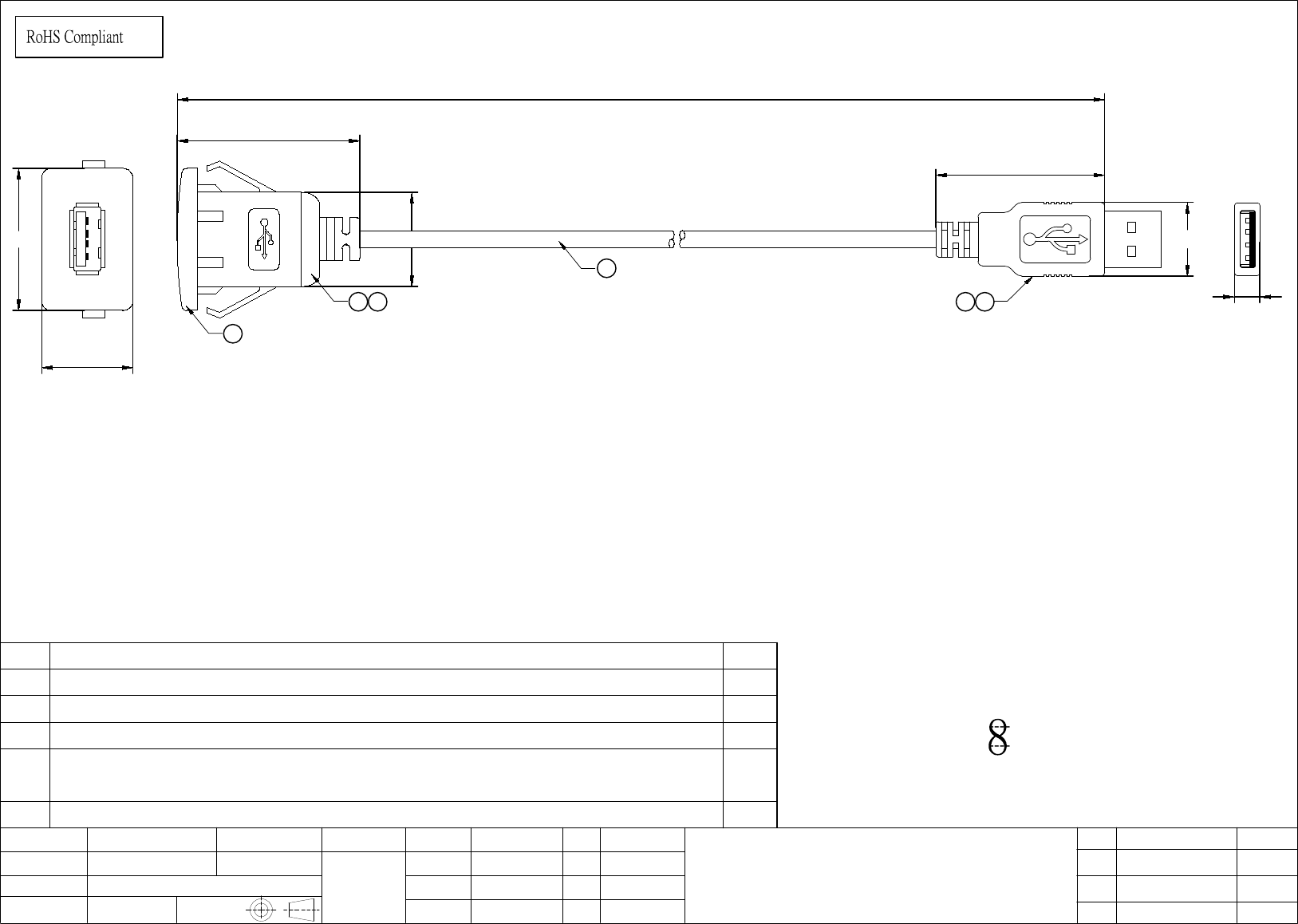

C11086-001 Drawing Datasheet by Adafruit Industries LLC

Unit(mm)
Original NO.
USB A M-F-30cm
ITEM NO.
Goods NO.
Company Goods Code
Drawing Evidence:
VER. REVISE Date
D
C
B
Description USB-A Snap Extend Q'ty
Premier Cable
OPEN/SHORT TEST: 100% TEST
INSULATION: 5M.
Approval
Check
Draw
Date
Date
Date 2018.12.07
DateAudit
1PCS
1
28AWG*1P+24AWG*2C+AEB OD:422MM L:300mm
BLACK PVC JACKET UL2725.
2
USB2.0 A M WHITE INSULATOR SOLDER TYPE. 1PCS
3
4
18g
15mm
P1
P2 2
5
4
USB2.0 A F WHITE INSULATOR SOLDER TYPE.
OVERMOLD BLACK PVC 45P MA-001.
5
1PCS
ABS BLACK.
USB A F
USB A M
P1 P2
1-----------------------------------------1
2-----------------------------------------2
3-----------------------------------------3
4-----------------------------------------4
S------------------------------------------S
PIN ASSIGNMENT
6
1PCS1PCS
30.31
18
18.6
36
10g
4
1
1
4
15.7
7.5
36
C11086-001
6
5
3
Adafruit
L.Fried
