EG-2121CB/2102CB Series SAW Oscillators

Epson's EG-2121CB/2102CB feature LVPECL, LVDS, or HCSL outputs

Image of EPSON's EG-2121CB/2102CB Series SAW OscillatorsEpson's EG-2121CB/2102CB is a family of low jitter SPSOs that come in a small 5.0 mm x 3.2 mm x 1.4 mm package. Each of these sets of devices can generate output frequencies ranging from 100 MHz to 700 MHz. Variations of these devices supporting the LVPECL, LVDS, or HCSL output types are available. The EG-2121 devices are intended for applications using a 2.5 V power supply voltage, whereas the EG-2102 devices are intended for applications using a 3.3 V power supply voltage. Each set of these devices have low phase jitter ranging from 0.1 ps to 0.27 ps (max).

Features
  • Frequency range: 100 MHz to 700 MHz
  • Supply voltage:
    • 2.5 V (EG-2121 series)
    • 3.3 V (EG-2102 series)
    • External dimensions: 5.0 x 3.2 x 1.4 mm
  • Frequency tolerance: ±50 ppm
  • Low jitter SAW technology
    • LVPECL, LVDS, or HCSL outputs
  • Small package dimensions
  • Output enabled

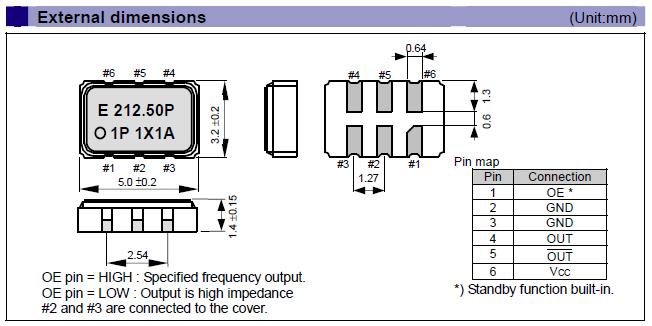

External dimensions
Image of EPSON's EG-2121CB/2102CB Series SAW Oscillators
Applications
  • Data center applications
  • GbE
  • OTN
  • SONET/SDH

EG-2102CB Series

ImageManufacturer Part NumberDescriptionFrequencyFunctionAvailable QuantityView Details
XTAL OSC SO 156.2500MHZ LVDS SMDEG-2102CB 156.2500M-LGPAL3XTAL OSC SO 156.2500MHZ LVDS SMD156.25 MHzEnable/Disable1366 - ImmediateView Details
XTAL OSC SO 156.250000MHZ SMDEG-2102CB 156.2500M-LGPNL0XTAL OSC SO 156.250000MHZ SMD156.25 MHzEnable/Disable0 - ImmediateView Details
XTAL OSC SO 150.000000MHZ SMDEG-2102CB 150.0000M-PGPNL0XTAL OSC SO 150.000000MHZ SMD150 MHzEnable/Disable0 - ImmediateView Details
XTAL OSC SO 212.500000MHZ SMDEG-2102CB 212.5000M-LGPNL0XTAL OSC SO 212.500000MHZ SMD212.5 MHzEnable/Disable0 - ImmediateView Details
XTAL OSC SO 212.500000MHZ SMDEG-2102CB 212.5000M-LGPAL0XTAL OSC SO 212.500000MHZ SMD212.5 MHzEnable/Disable0 - ImmediateView Details

EG-2121CB Series

ImageManufacturer Part NumberDescriptionFrequencyFunctionAvailable QuantityView Details
XTAL OSC SO 312.500000MHZ SMDEG-2121CB 312.5000M-LGPAL0XTAL OSC SO 312.500000MHZ SMD312.5 MHzEnable/Disable0 - ImmediateView Details
