            THN 15N Series Encapsulated PCB-Mount DC/DC Converters
                    TRACO Power's 15 W converters feature an ultra-compact (1.00 in. x 1.0 in. x 0.39 in.), six-sided metal case


Image of TRACO Power's THN 15N Series Encapsulated PCB-Mount DC/DC Converter TRACO Power's THN 15N series high-performance, 15 W DC/DC converters are featured within an encapsulated and shielded 1 in. x 1 in. x 0.39 in. metal package. The enhanced design allows users to fully integrate an EN 55032 Class A filter without the need for any external components, while greatly reducing the no-load power consumption (96 mW to 336 mW).

The THN 15N devices feature a wide 2:1 input voltage range with tightly regulated output(s). Additional features include a remote on/off and trimmable outputs. The converters offer 1,600 V_DC isolation and UL 62368-1 approvals making them ideal where space on the PCB is critical, including mobile equipment, instrumentation, distributed power architectures, and industrial electronics.

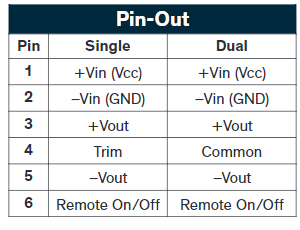

Pin Chart

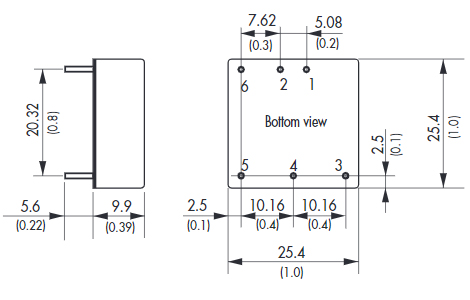

Mechanical Diagram

Features

Reduced no-load power consumption
Electromagnetic interference (EMI) Level A compliance with no external components required
Wide 2:1 input ranges: 9 V_IN to 18 V_IN, 18 V_IN to 36 V_IN, and 36 V_IN to 75 V_IN
-40°C to +70°C ambient temperature range, full-load operation

3.3 V_DC to 24 V_DC single and dual output
1,600 V_DC I/O isolation
1.67 mill hrs. MTBF per MIL-HDBK-217F at +25°C
IEC/EN/UL 60950-1/62368-1 approved
3-year warranty

Applications

Mobile equipment
Instrumentation

Communication and industrial:
- Distributed power architectures
