M5Stack Digital Clock

 Simple Digital Clock.

In this quick guide I will show you the basic code needed to display hours and minutes on the M5Stack Digi-clock unit after retrieving the time using RTC.

For this I used:

Core2 AWS - K010-AWS

Digi-Clock Unit - U076-B

The Digi-clock unit is connected with a provided grove cable to port A of the Core2 AWS. The following simple code is the minimum needed un UIFlow to retrieve time with the RTC and display it on the Digi-clock unit:

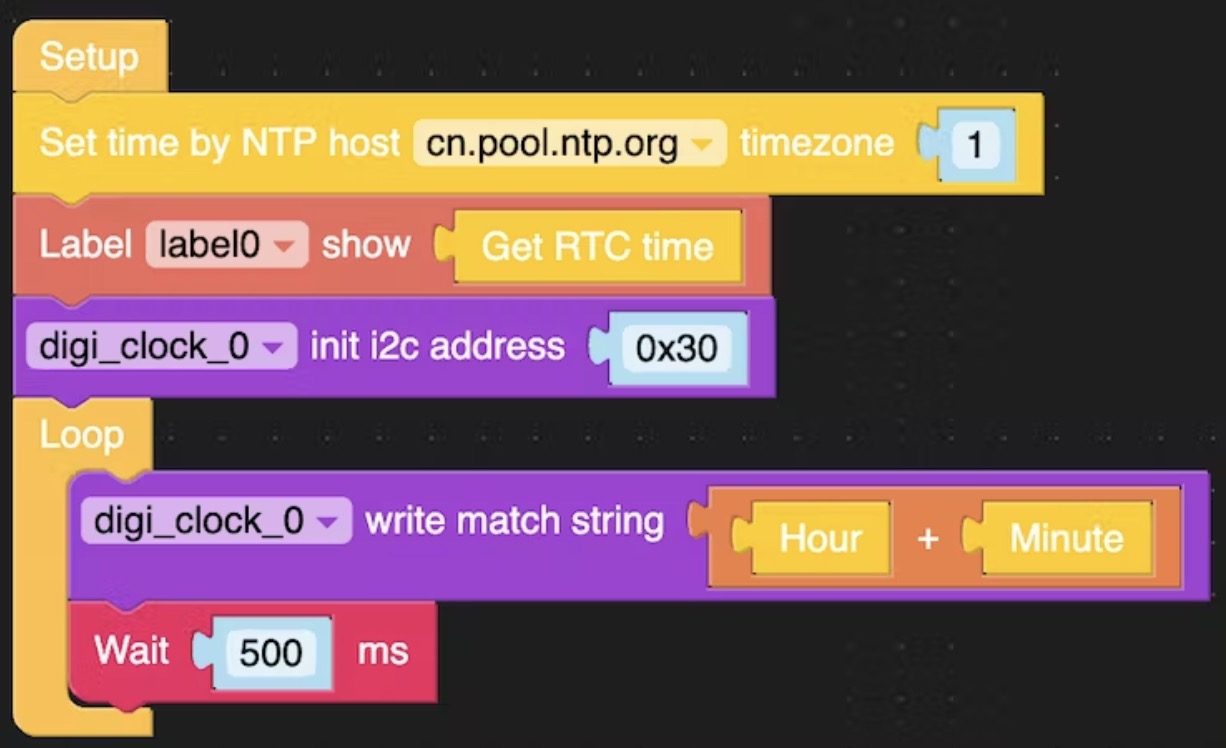

Minimum basic code for the 4-digit clock



The trick to this is to call the hours and miniutes but join them using a text string joining block. A Wait block is needed to prevent the i2C bus from getting overloaded with string messages getting sent.

Stalk/Contact me!

If you would like to reach out you can drop a message here or you can drop a message on our Facebook group here: https://www.facebook.com/groups/m5stack

The Official forums here: https://community.m5stack.com

Via Twitter : https://twitter.com/Cpt_J_Purcell

Code

from m5stack import *
from m5stack_ui import *
from uiflow import *
import time
import unit

screen = M5Screen()
screen.clean_screen()
screen.set_screen_bg_color(0xFFFFFF)
digi_clock_0 = unit.get(unit.DIGI_CLOCK, unit.PORTA)

label0 = M5Label('label0', x=2, y=49, color=0x000, font=FONT_MONT_14, parent=None)

rtc.settime('ntp', host='cn.pool.ntp.org', tzone=1)
label0.set_text(str(rtc.datetime()))
digi_clock_0.init_i2c_address(0x30)
while True:
  digi_clock_0.write_match_string(((str((rtc.datetime()[4])) + str((rtc.datetime()[5])))))
  wait_ms(500)
  wait_ms(2)
