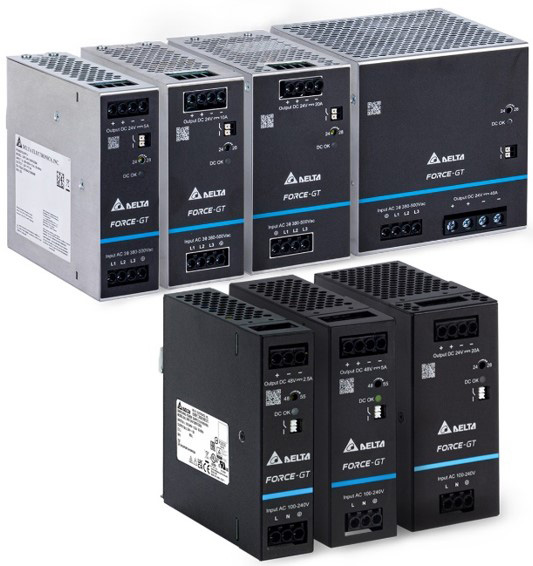

Force-GT Series Industrial DIN Rail Power Supply

Delta Electronics' Force-GT series of DIN rail power supplies includes both single- and three-phase input models, offering output power ranging from 120 W to 960 W and output voltage options from 12 V to 48 V. This series boasts an impressive power efficiency of up to 95%. Two single-phase 480 W models have also earned 80 PLUS Platinum certification for 115 V industrial applications. It is environmentally friendly, significantly reducing unnecessary energy consumption and operational costs.

The Force-GT series is designed to excel in demanding industrial environments. With an operating temperature range from -30°C to +70°C, a cold start capability down to -40°C, and the ability to handle temperatures up to +60°C at full load, it can operate reliably in extreme conditions. Protective conformal coatings on the PCBAs further enhance their resistance to harsh industrial conditions. The series is also equipped with a DC OK relay, which enhances real-time monitoring of abnormal output conditions. Moreover, it complies with multiple international safety certifications and is suitable for semiconductor manufacturing, industrial robots, renewable energy facilities, and more.

Features

• Universal AC input voltage range
• Built-in constant current circuit for charging applications
• Wide operating temperature: -30°C to +70°C and cold start at -40°C
• Full load operating temperature up to +60°C
• Ultra-slim design
• Long-life electrolytic capacitor
• Reduced no-load power consumption
• Built-in DC OK relay and LED indicator
• Conformal coating on PCBAs to protect against common dust and pollutants
• Complete safety approvals for worldwide implementation
• Available with screw or spring clamp terminals

Applications

• Semiconductor manufacturing: semiconductor process equipment and semiconductor automation
• Industrial robots: robotic arms and collaborative robots (cobots)
• Renewable energy facilities: solar power facilities, wind power facilities, and energy storage system
• Process automation: petrochemical industries and oil refineries
• EV chargers: AC EV and DC EV chargers
