            IP67 Rated I/O-Link Converters
                    WAGO’s analog converters are ideal for new systems as they take advantage of the benefits offered by I/O-link

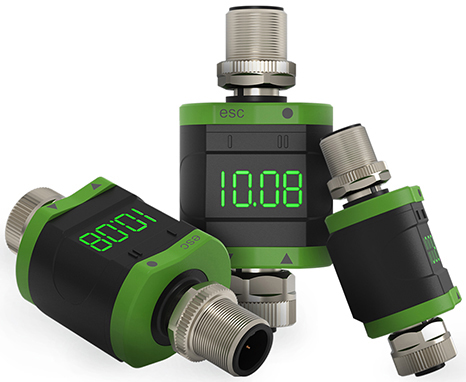

WAGO’s IP67 rated I/O-link analog converters offer a solid and cost-effective solution for incorporating conventional analog sensors and actuators with I/O-link communications.

The 765-2702/200-000 has two 0 V_DC to 10 V_DC inputs converted to I/O-link for monitoring field level sensors. The 765-2703/200-000 has two 4 mA to 20 mA analog outputs, while the 765-2704/200-000 has two 0 V_DC to 10 V_DC analog outputs. Both devices will convert I/O-link signals to analog outputs, and all of these devices can be set up using I/O-link configuration tools such as WAGO’s I/O-link configurator software.

These devices are ideal for new systems as they take advantage of the benefits offered by I/O-link. Users who wish to update older systems to digital communications can also leverage these compact IP67 devices.

Features

Decentralized display, preprocessing, and conversion of analog signals
Use as an I/O-link device or stand-alone
Communication interface that requires an I/O-link-capable module (I/O-link master) for interoperation
Interface allows direct access to the process and diagnostic data and enables setting of the device parameters during operation
Compares the measured current value with the set parameters and switches the output according to the selected function
Parameterization is performed either via the push ring or with the WAGO I/O-link configurator

Applications

New systems

Updating older systems
