DisplayPort Overview Slide 20

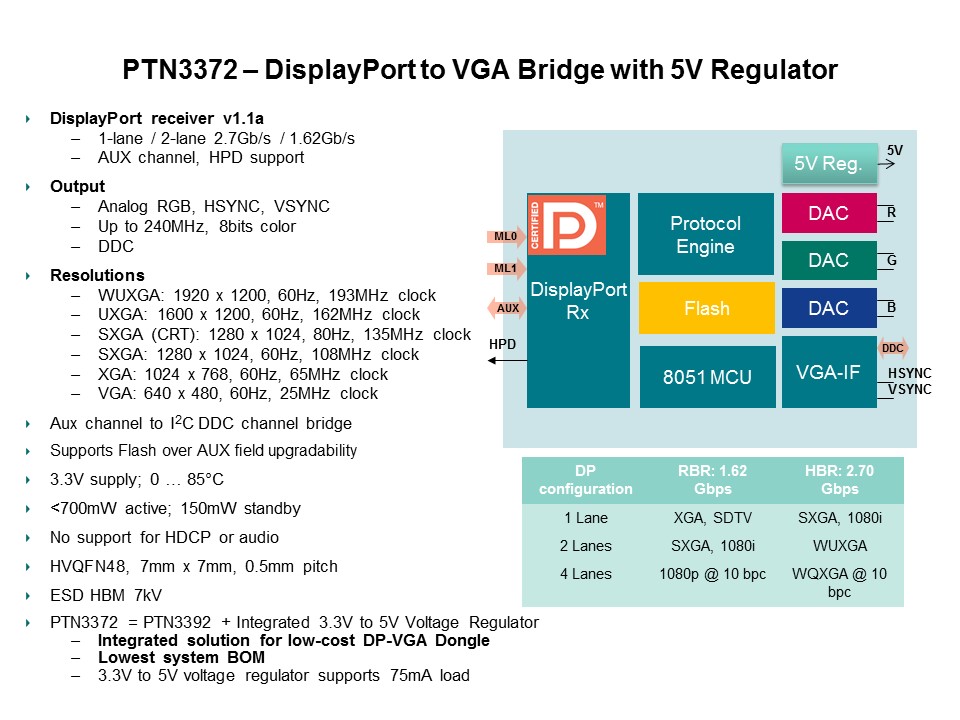

The PTN3372 is the latest DisplayPort to VGA adapter under development. It is a follow up part to PTN3392 with an integrated 5V regulator that will further reduce the bill-of-material (BOM) for dongle makers making it an ideal DisplayPort to VGA adapter solution with the lowest BOM and lowest cost solution in the industry.
PTM Published on: 2011-11-02
