Z-Slide11

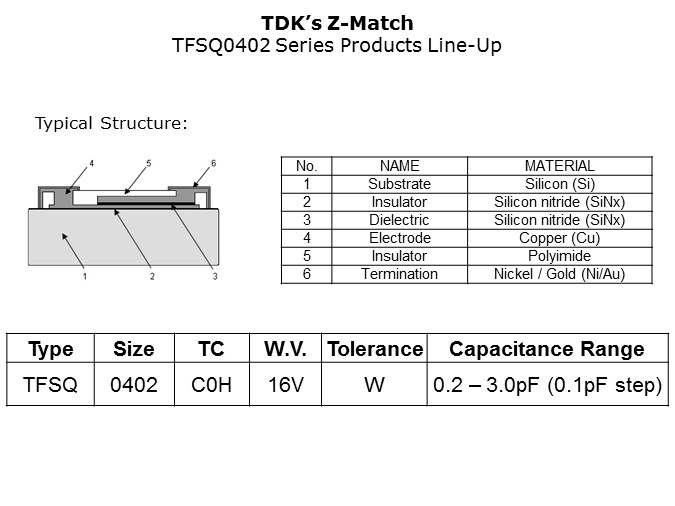

The Z-Match product line structure and composition is shown on this slide. TDK’s TFSQ series is offered in 0402 (EIA 01005) size with voltages of 16V, and the temperature coefficient is C0H at 2GHz. The TFSQ series has a Silicon (Si) body and has a base metal electrode composed of Copper (Cu).

PTM Published on: 2011-09-15
