Z-Slide5

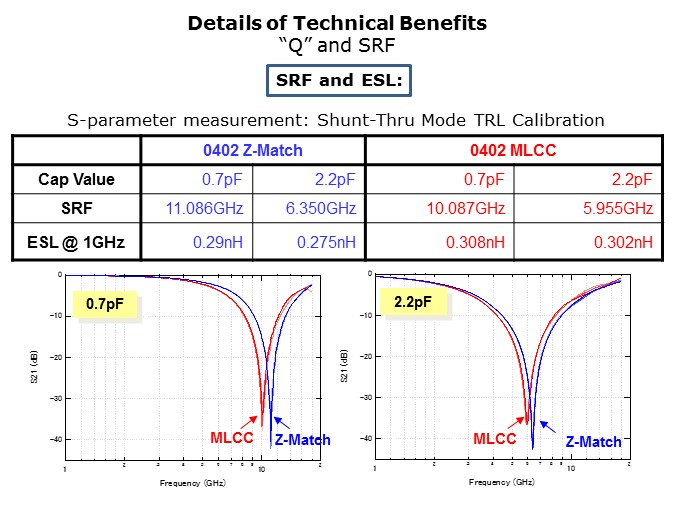

The Z-Match products show a higher Self Resonance Frequency (SRF) and lower ESL than MLCC capacitors, as shown in the graphs on this slide.
