Z-Slide12

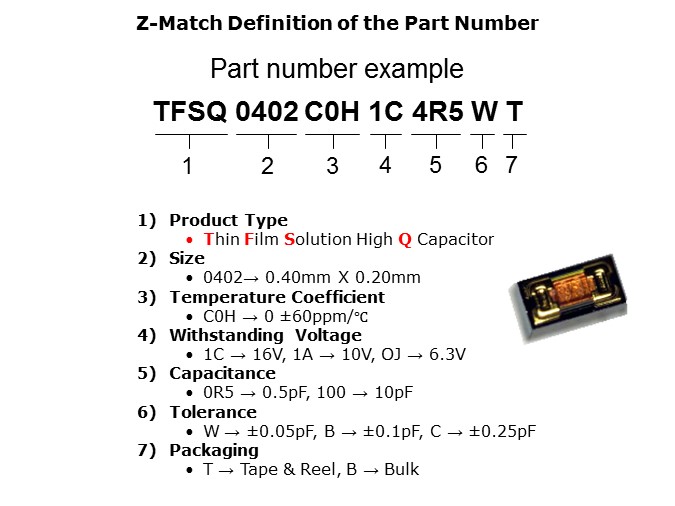

As shown on this slide, the TFSQ part number consists of the following: product type, size, temperature coefficient, withstanding voltage, capacitance, tolerance and packaging. This series is called Z-Match because of its ideal use in impedance matching circuits.

PTM Published on: 2011-09-15
